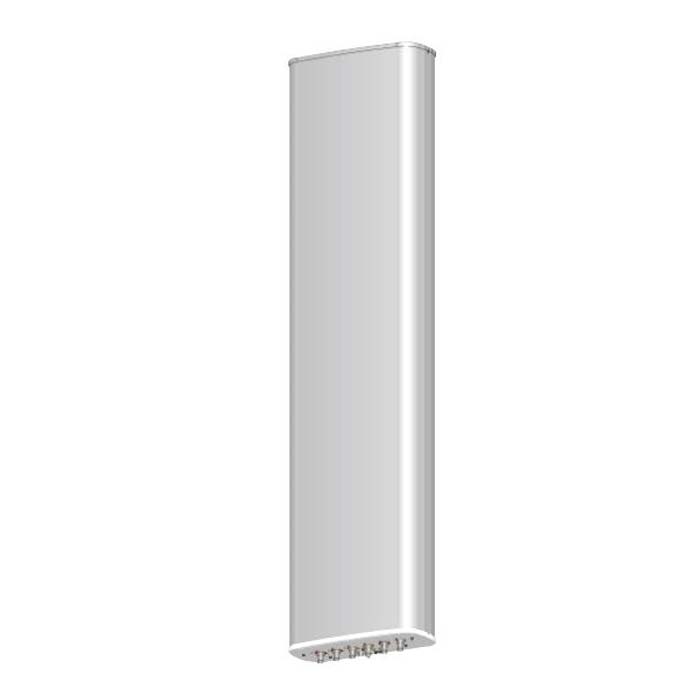

2LB1MB 65° 15.5/17.5dBi 多頻天線

698-806

806-880

880-960

1710-2170

2300-2490

2490-2690

Gain (dBi):

14.3±0.5

14.8±0.5

15.3±0.5

16.3±0.5

17.3±0.5

17.0±0.5

Return Loss (dB):

>14 (VSWR<1.5)

Polarization:

±45°

Horizontal 3dB beamwidth (°):

70

65

60

68

62

58

Vertical 3dB beamwidth (°):

11.0

10.5

9.5

7.5

6.0

5.3

Electrical Downtilt (°):

2-12 Independently Continuously Adjustable

2-12 Independently Continuously Adjustable

RET Type:

Cascade SRET, AISG 2.0, Upgradeable

1^st Upper Sidelobe Level (dB):

15

15

15

15

15

15

Front to Back Ratio @180±30°(dB):

22

23

24

25

25

25

Cross Polar Ratio 0° (dB):

15

15

15

15

15

15

Cross Polar Ratio 60° (dB):

10

9

8

9

8

7

Intraband Isolation (dB):

>25

Interband Isolation (dB):

>28

Max. Power Per Port (W):

250

200

Intermodulation IM3 (dBc):

<-150 (2×43 dBm)

Impedance (ohm):

50

Lightning Protection:

DC Grounded

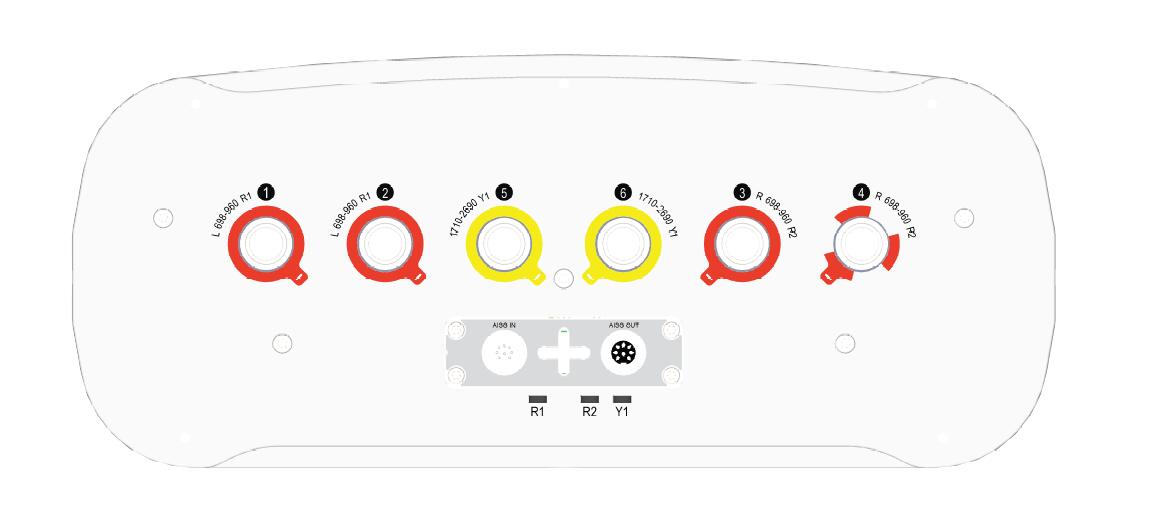

Connector Type:

6×4.3-10 Female

Packing Dimensions (mm):

2090×535×280

Antenna Net Weight/Bracket (kg):

28.5/5.9

Antenna Gross Weight (kg):

39.5

Radome Material:

Fiberglass

Pipe OD (mm):

50-115

Mounting Kits (Included):

BA.K.04.00069101, Adjustable Downtilt 0°-12°
