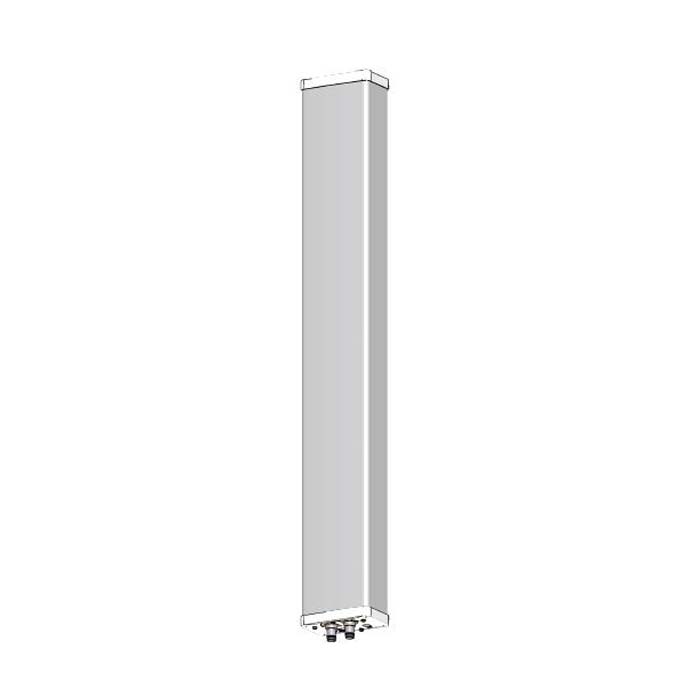

1MB 65° 18dBi 單頻天線
型號：LPX310R-C
Electrical Specifications
Frequency Range (MHz): | 1710-2690(Y1) | ||
1710-2170 | 2200-2490 | 2490-2690 | |
Gain (dBi): | 16.8±0.5 | 17.2±0.5 | 17.5±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) | ||
Polarization: | ±45° | ||
Horizontal 3dB Beamwidth (°): | 68 | 65 | 58 |
Vertical 3dB Beamwidth (°): | 7.8 | 6.5 | 5.5 |
Electrical Downtilt (°): | 0-10 Independently Continuously Adjustable | ||
RET Type: | RET Cascade SRET, AISG 2.0, Upgradeable | ||
1st Upper Sidelobe Suppression(dB): | 16 | 16 | 16 |
Front to Back Ratio (dB): | >25 | ||
Cross Polar Ratio 0° (dB): | 15 | 15 | 15 |
Cross Polar Ratio ±60° (dB): | 10 | 9 | 8 |
Isolation Port to Port (dB): | >28 | ||
Max. Power Per Port (W): | 250 | ||
Intermodulation IM3 (dBc): | <-150(2×43 dBm) | ||
Impedance (ohm): | 50 | ||
Lightning Protection: | DC Grounded | ||

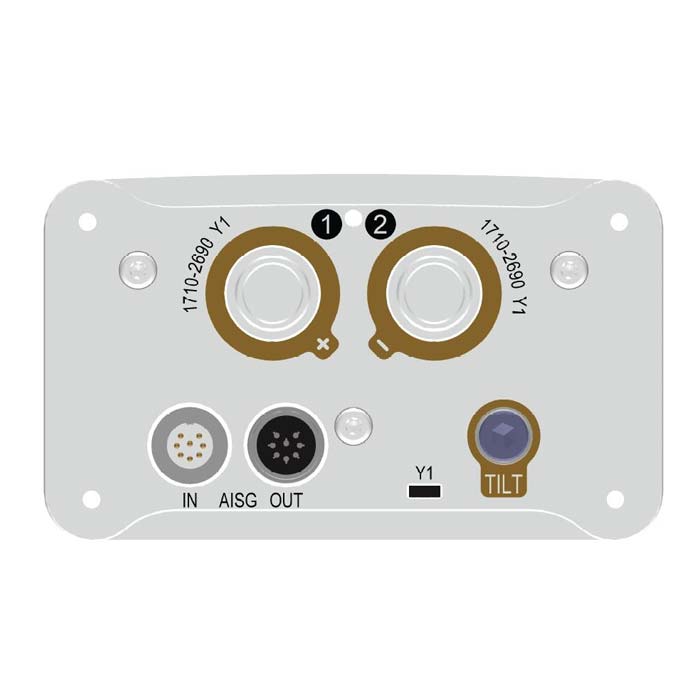

Connector Type: | 2×4.3-10 Female | ||
Mechanical Data
Antenna Dimensions (mm): | 1130×155×90 |
Packing Dimensions (mm): | 1475×240×185 |
Antenna Net Weight/Bracket (kg): | 5.5/1.5 |
Antenna Gross Weight (kg): | 9 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 70-114 |
Mounting Kits (Included): | BA.K.04.00013, Adjustable Downtilt 0°-15° |
