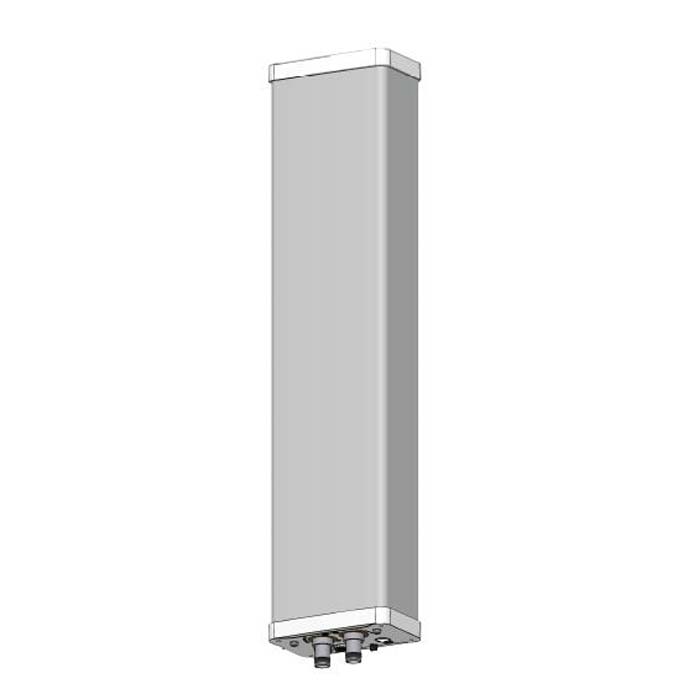

1MB 65° 16dBi 單頻天線
型號：LPX306R-E2-C
Electrical Specifications
Frequency Range (MHz): | 1710-2690(Y1) | ||
1710-2170 | 2300-2490 | 2490-2690 | |
Gain (dBi): | 14.6±0.5 | 15.0±0.5 | 15.3±0.5 |
Return Loss (dB): | >14 (VSWR<1.5) | ||
Polarization(°): | ±45° | ||
Horizontal 3dB Beamwidth (°): | 69 | 63 | 58 |
Vertical 3dB Beamwidth (°): | 14.5 | 11.0 | 10.0 |
Electrical Downtilt (°): | 2-12 Independently Continuously Adjustable | ||
RET Type: | RET Cascade SRET, AISG 2.0, Upgradeable | ||
1st Upper Sidelobe Suppression (dB): | 15 | 15 | 15 |
Front to Back Ratio (dB): | >25 | >25 | >25 |
Cross Polar Ratio 0° (dB): | 15 | 15 | 15 |
Cross Polar Ratio ±60° (dB): | >10 | >8 | >6 |
Isolation Port to Port(dB): | >25 | ||
Max. Power Per Port (W): | 200 | ||
Intermodulation IM3 (dBc): | <-150 (2×43dBm) | ||
Impedance (ohm): | 50 | ||
Lightning Protection: | DC Grounded | ||

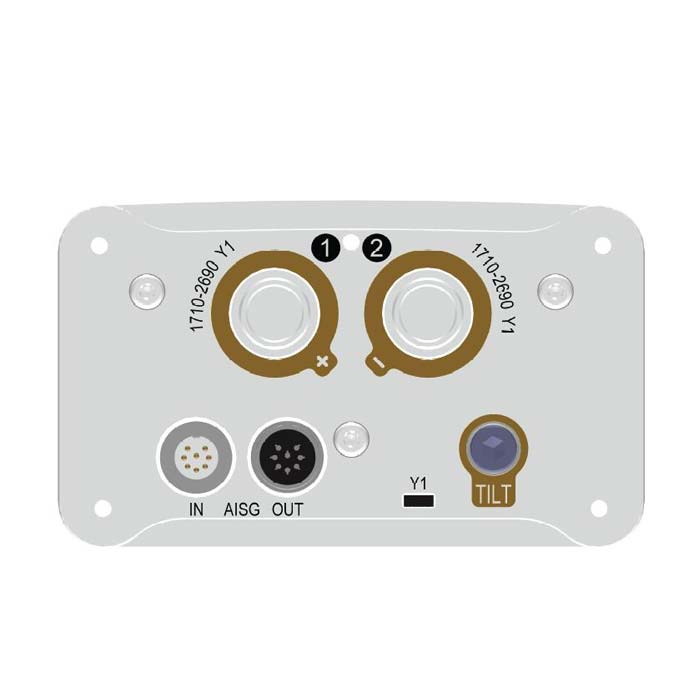

Connector Type: | 2×4.3-10 Female | ||
Mechanical Data
Antenna Dimensions (mm): | 695×155×90 |
Packing Dimensions (mm): | 1040×240×185 |
Antenna Net Weight/Bracket (kg): | 4/1.5 |
Antenna Gross Weight (kg): | 7.5 |
Radome Material: | Fiberglass |
Pipe OD (mm): | 70-114 |
Mounting Kits (Included): | BA.K.04.00013, Adjustable Downtilt 0°-15° |
